Promethion甲烷气体分析仪

分析甲烷与代谢和行为同步

Promethion甲烷气体分析仪

分析甲烷与代谢和行为同步

Features Description Specs Downloads Contact Us Sable Enables

Features

快速响应时间和低功耗要求
CH4 测量范围广：0-100 ppm，精度高（每秒 0.9ppb）
单个分析仪可以与多达 8 个笼子复用
与 Promethion 核心和 Field Metabolic Systems 同步耦合
Promethion Live 软件进行实时分析
无需消耗品或外部校准

DESCRIPTION

实时测量离散的小量甲烷

新的 Promethion 甲烷气体分析仪是我们 Promethion ™ Core 系统的最新升级。我们的甲烷分析仪是唯一具有满足流通式呼吸机苛刻应用需求的分辨率和灵敏度的分析仪。甲烷分析仪数据与 Promethion Core 代谢和行为数据以及 Promethion 稳定同位素分析仪数据同步添加。

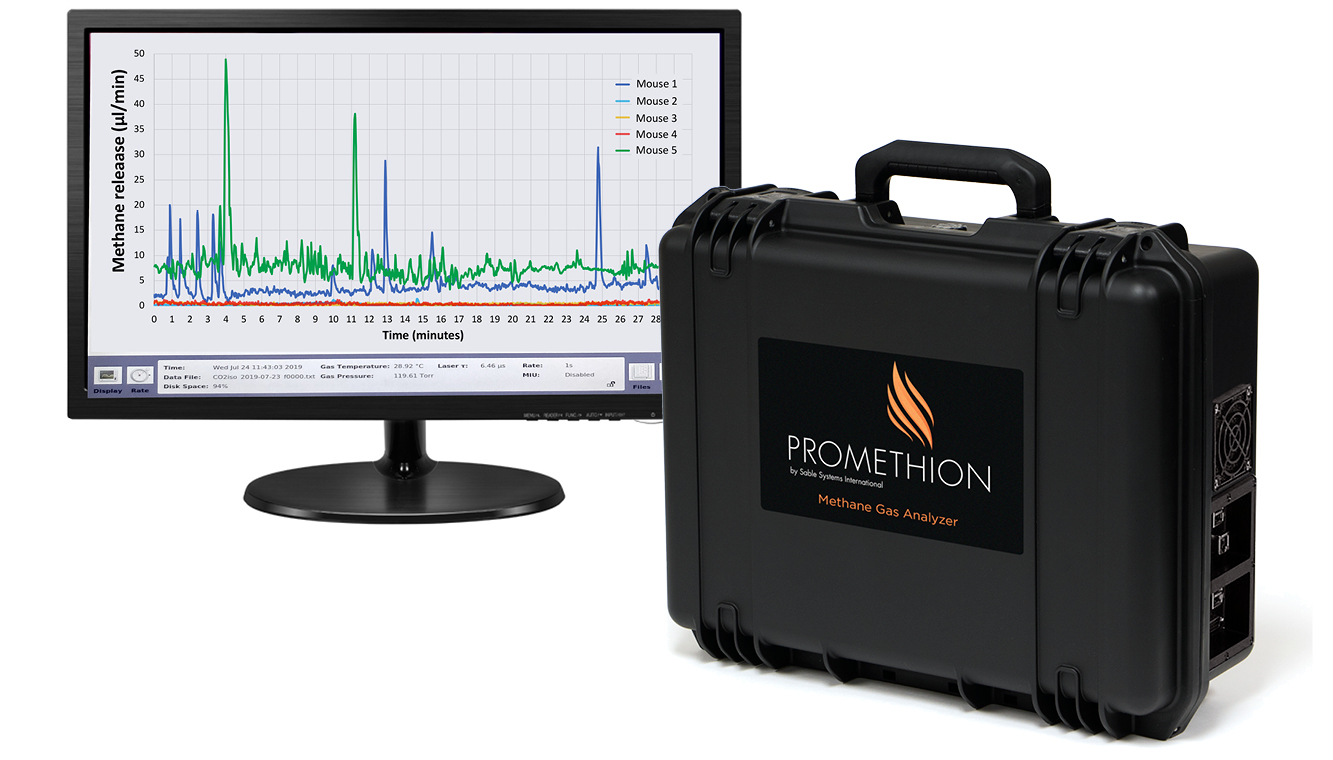

5 只小鼠的甲烷产量。小鼠 1 和 5 产生甲烷，而小鼠 2、3 和 4 几乎没有产生甲烷也没有间歇性释放。

Methane production from 5 mice. Mice 1 and 5 produced methane whereas mice 2, 3 and 4 produced almost no methane and no episodic releases.

使用此设备与 Promethion Core 和稳定同位素分析仪，现在可以进行各种代谢研究，包括对饮食、药物、微生物群落、转基因生物、运动、热量暴露、年龄和性别的实验性干预。对于厌氧菌研究，小鼠可以在我们的无病原体隔离笼中饲养。实验指标包括单个甲烷事件的数量和大小、固有甲烷产量和累积甲烷产量。人和其他大型动物 – 实时测量呼气中的固有甲烷产量

人类运动前、中和后甲烷（红色）和二氧化碳（蓝色）的产量。两种气体都连续采样

Methane (red) and carbon dioxide (blue) production from a human before, during and after exercise. Both gasses were sampled continuously.

甲烷分析仪可以与 FMS 间接测量热量代谢系统或 Promethion 房间测量热量代谢系统（用于人类）耦合，或者当需要高分辨率的流通式测量时。气体收集接口可以是面罩、顶篷或定制外壳。

View map of Promethion Core and Promethion Room Calorimetry academic installations

specs

Precision (1 second / 10 seconds / 100 seconds)	[CH₄]: 0.9ppb / 0.3ppb / 0.1ppb
	[CO₂]: 6ppm / 2ppm / 1ppm
	[H₂O]: 200ppm / 60ppm / 30ppm
Measurement Range (meets all specifications)	[CH4]: 0-100 ppm standard
	[CO₂]: 0-20,000ppm
	[H₂O]: 0-30,000ppm
Flow time response	3Hz
Sampling Conditions	Sample Temperature: -40° – 50 °C
	Operating Temperature: 5° – 45 °C
	Ambient Humidity: 0-99% relative humidity non-condensing
Data outputs	WiFi, Ethernet, USB, MIU connection (8 ports), Serial (RS-232)
Power Requirements	10-30 VDC or 110/240 VAC
	27W
	120W Power supply/charger included
	100Wh internal battery included, 3-hour autonomy
Dimensions (H x W x D)	12cm x 34 cm x 29.5 cm
Dimensions (H x W x D)	6 in. x 13.4 in. x 11.6 in.
Weight	6.1 kg (13.5 pounds) with internal battery
