Promethion Live软件平台

动物福利和实验进展的实时监测

Promethion Live软件平台

动物福利和实验进展的实时监测

Features        Description       Specs        Downloads       Contact Us       Sable Enables

Features      Description     Specs      Downloads     Contact Us     Sable Enables

Features

  • 实时访问研究和动物信息,以实现实时决策
  • 直观的设置界面简化了所有笼子和设备参数的输入
  • 动物特定数据的输入实现动物跟踪和实时队列分析
  • 可访问完全透明和可追溯的原始数据,以便未来进行数据挖掘
  • 连续监测系统性能、动物福利和数据质量
  • 灵活的实时分析和可视化分组数据
  • 模板简化研究设置,同时增强一致性和质量控制
  • 键校准确保准确的呼吸测量(来自宣传手册)
  • 将数据导出为CSV文件或SVG图形,简化研究数据的分析和展示
  • 通过任何设备进行安全的移动访问,随时远程查看实验

DESCRIPTION

Promethion Live软件提供对您的研究信息的全面系统控制和实时监测,从系统设置到数据采集、评估和报告。您可以实时监督动物福利和系统性能,以便在需要时立即进行干预。

Promethion Live是唯一允许实时访问分组数据的系统软件,因此您可以在实验过程中评估研究进展,并在时间轴早期发现潜在的设置错误。分组数据可以以平均值或中位数+/-标准差或标准误差的形式呈现,用于统计分析。

自动校准、简化实验设置或加载现有设置模板使得开始实验变得容易。对于报告和演示,可以设置任何持续或已完成研究中的任何时间范围的数据导出,并以CSV数据或SVG图形格式输出。所有原始和计算的研究数据都被记录下来,以实现透明性、可追溯性和未来的数据挖掘。

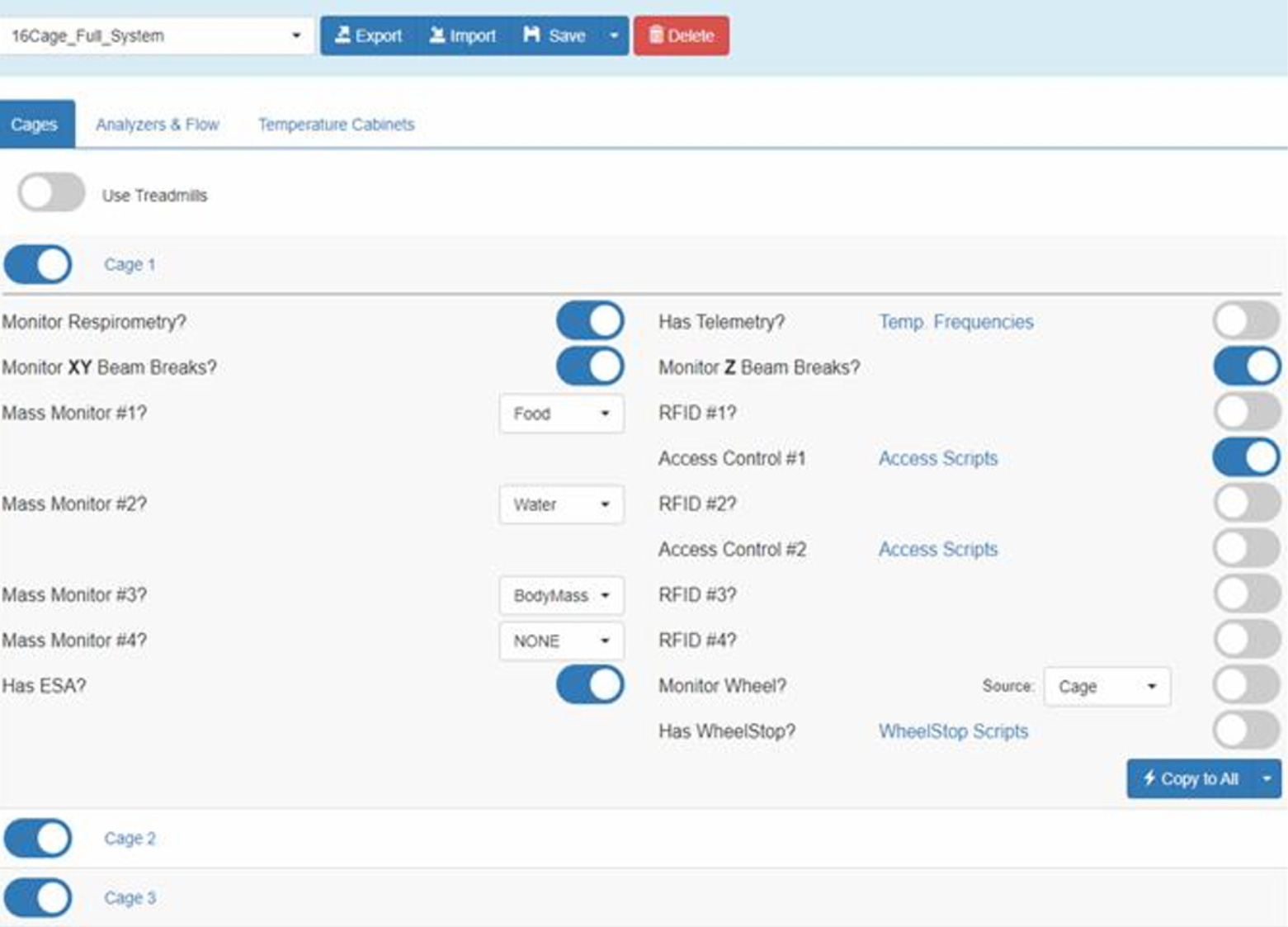

在几分钟内设置和启动实验

直观的用户界面可以快速设置您的研究。配置可以存储和重复使用,进一步节省时间。可以通过修改现有配置快速构建新配置。软件甚至包含一键校准功能。



目了然地评估系统状态

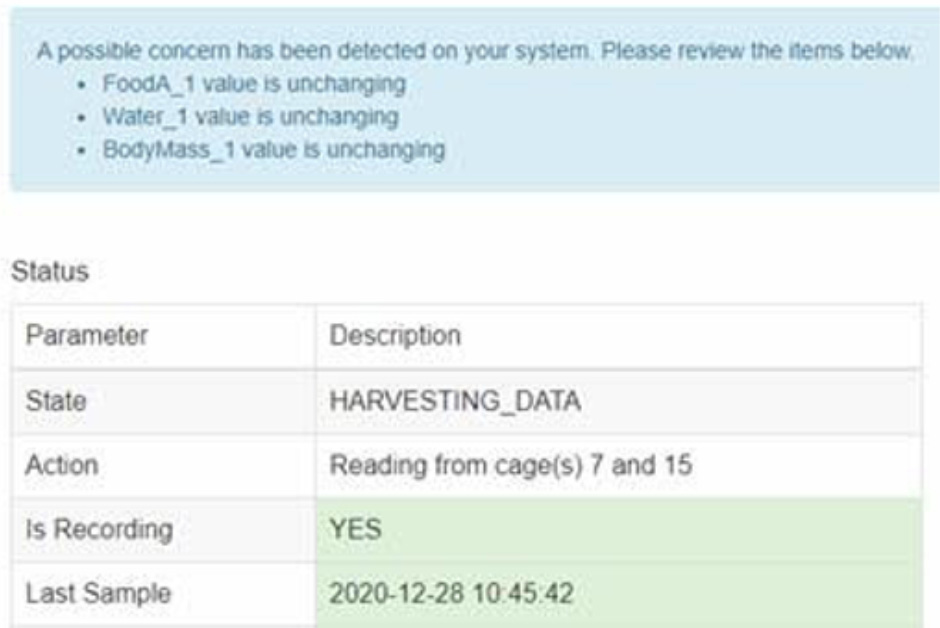

  1. Promethion Live软件持续监控所有笼子,并在参数超出可接受范围时通知用户。这样可以在实验过程中实时识别和处理错误。通过远程访问功能,可以在一天24小时内从几乎任何地方进行监控。

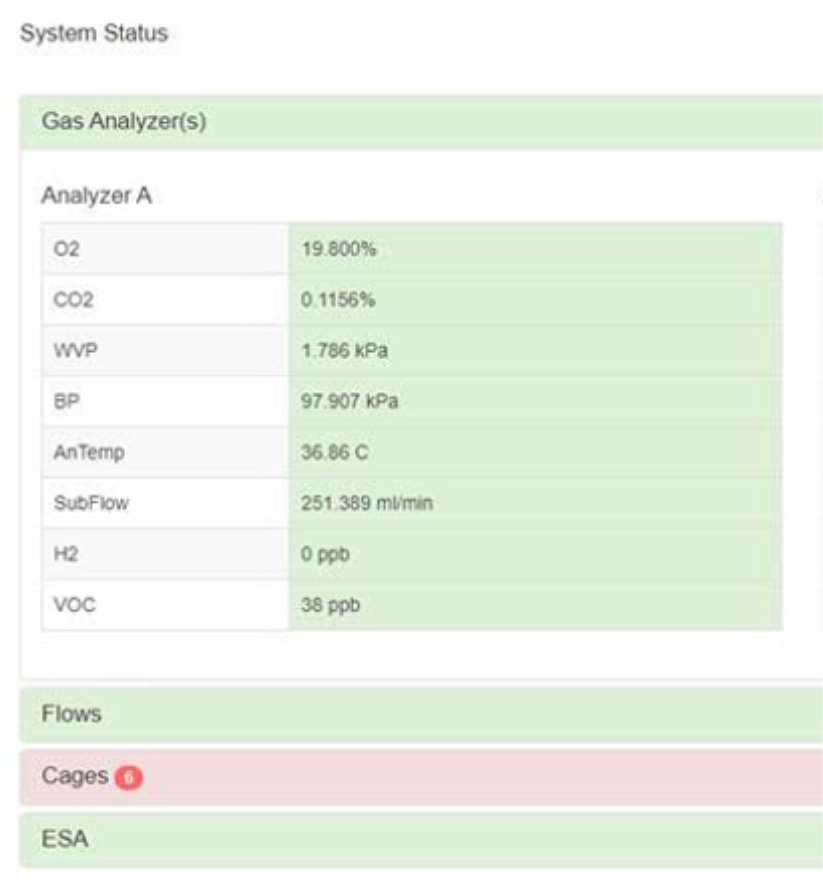

2.系统状态屏幕使用颜色编码来突出显示潜在系统错误的来源。

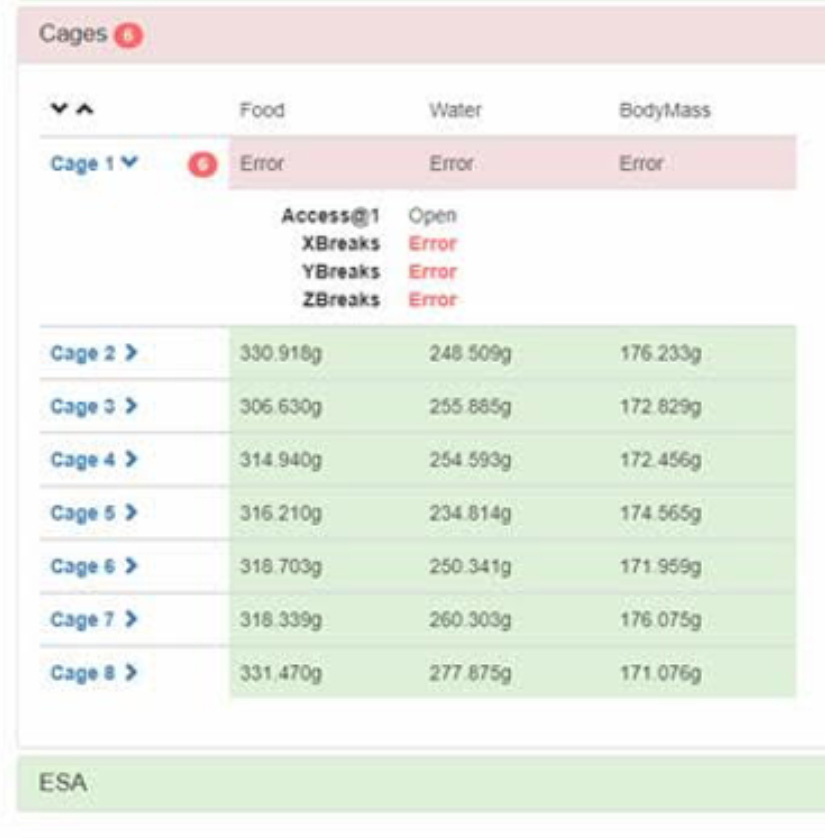

3.单击错误来源可以提供具体细节,比如笼子组件。系统甚至可以识别何时需要重新加食物和水。

24/7监测动物福利

Promethion Live软件提供个别动物数据的查看,为饲养员提供了对饮水、进食和活动的“一目了然”的验证。这些个性化视图可以用于任何参数的测量。系统中的任何数据都可以被提取到模板中,并保存供任何饲养员使用。



实时分析实时数据

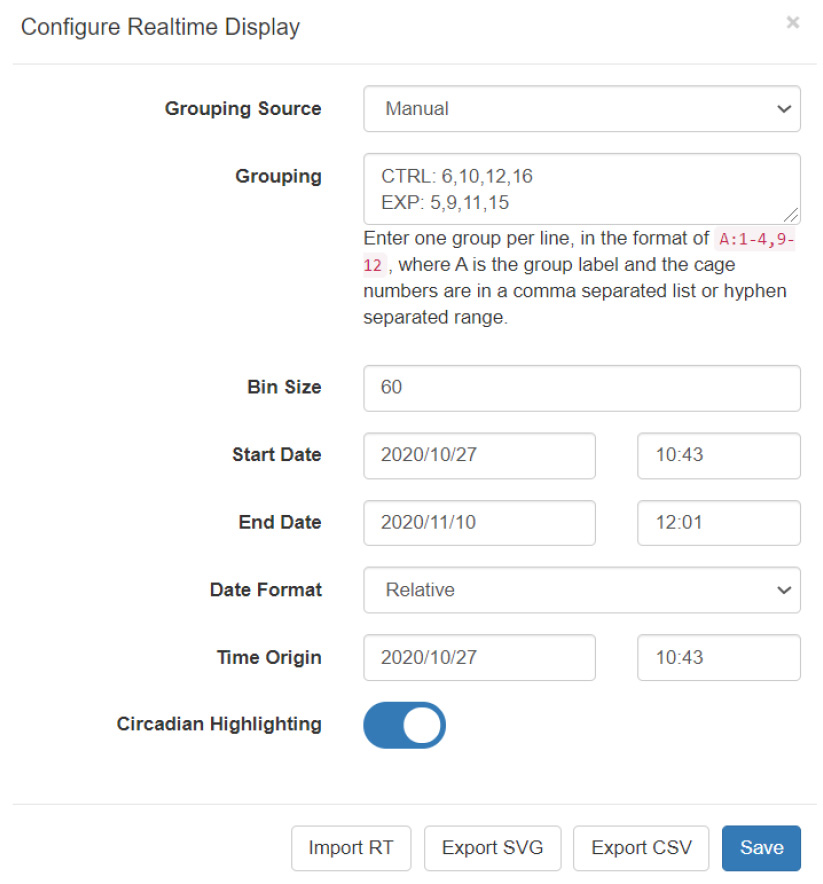

Promethion Live使得对复杂代谢数据进行分析和评估变得简单。选择个别动物和参数进行比较,或定义动物群以直接可视化队列特定的差异。实时记录可以在实验进行过程中查看,也可以在实验过程中的任何时点直接下载为.csv文件。时间分辨率也可以进行调整,最大程度地提高短期或长期研究的灵活性。

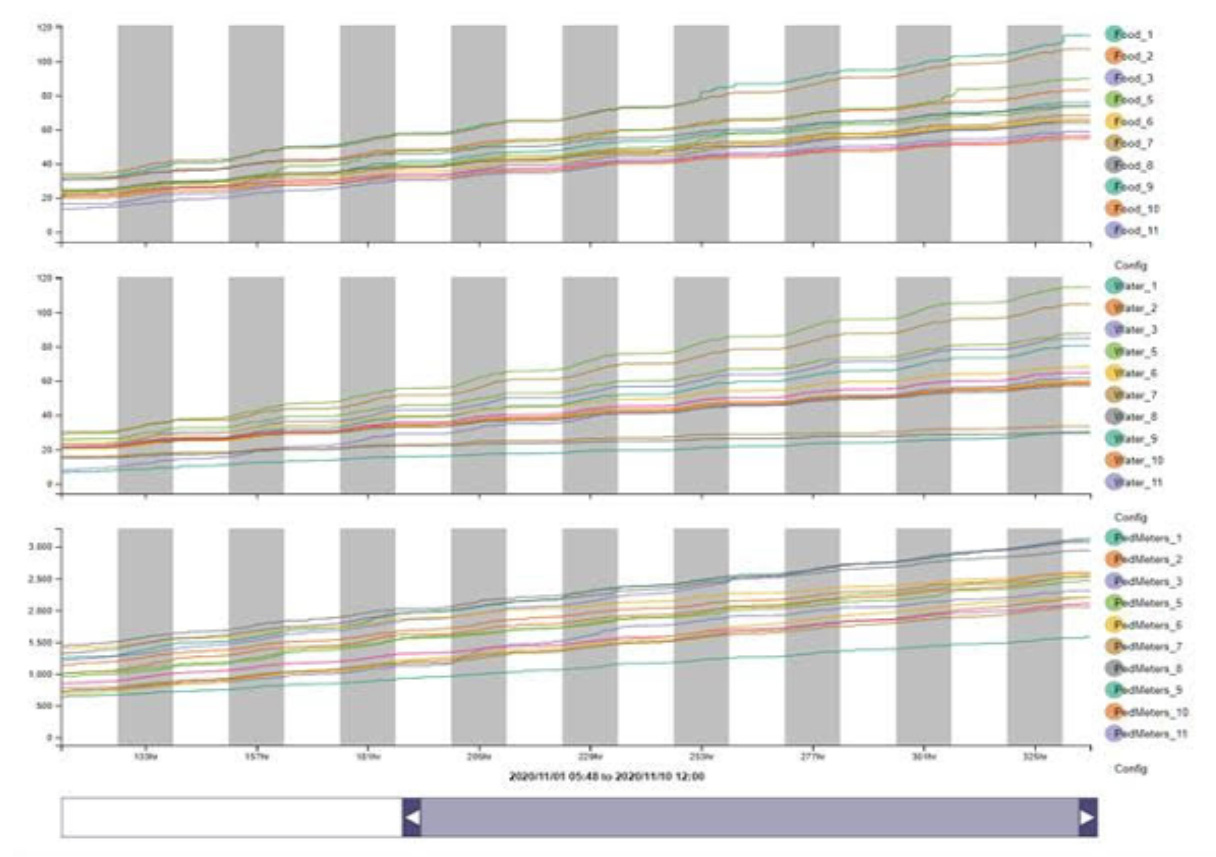

与昼夜节律相关的活动模式(例如开关灯)在图形显示中的灰色和白色列中很容易检测到。可编辑的模板和配置允许创建和保存特定报告。对于统计评估,动物可以按组进行分组,数据显示为平均值或中位数,并附带标准差或标准误差。数据可以按照任意间隔进行分组,并可以以CSV数据或SVG(图形)格式导出。



线条代表随时间变化的分组均值数据,阴影区域代表随时间变化的标准差。



Promethion Live软件提供对Promethion/Promethion Core组件和外围设备的控制和记录,包括:

  • 流量发生器
  • 气体分析仪
  • 笼子传感器
  • 环境传感器
  • 群体饲养笼系统
  • 稳定同位素分析仪

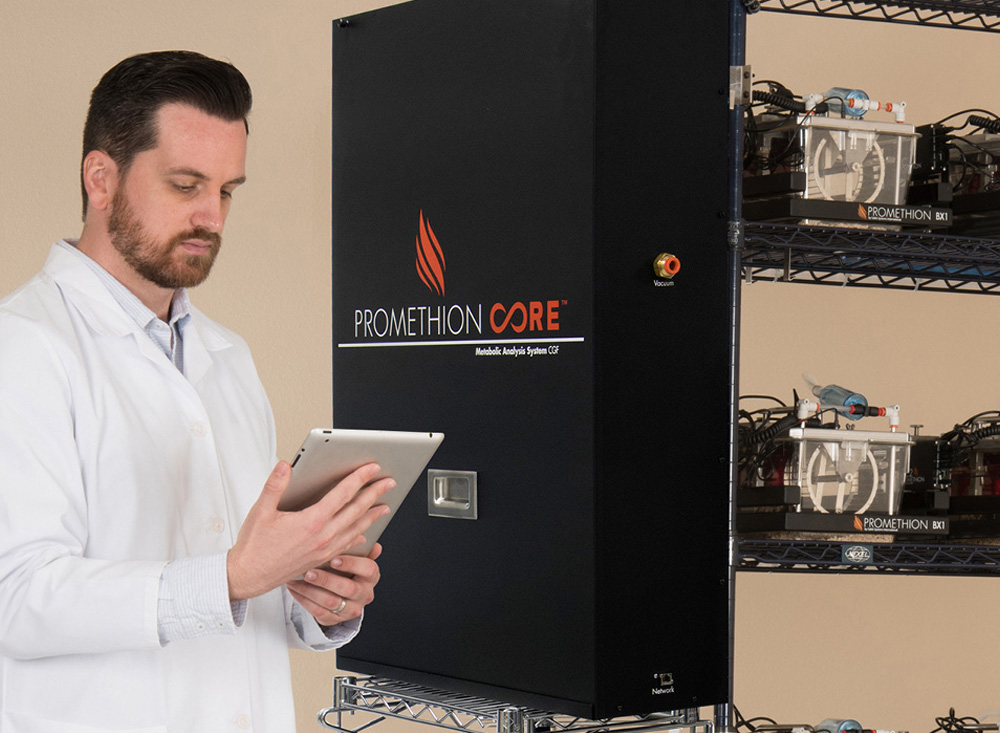

Promethion Core with the Cab-8 option
Promethion Core with the Cab-8 option

高内容代谢表型分析

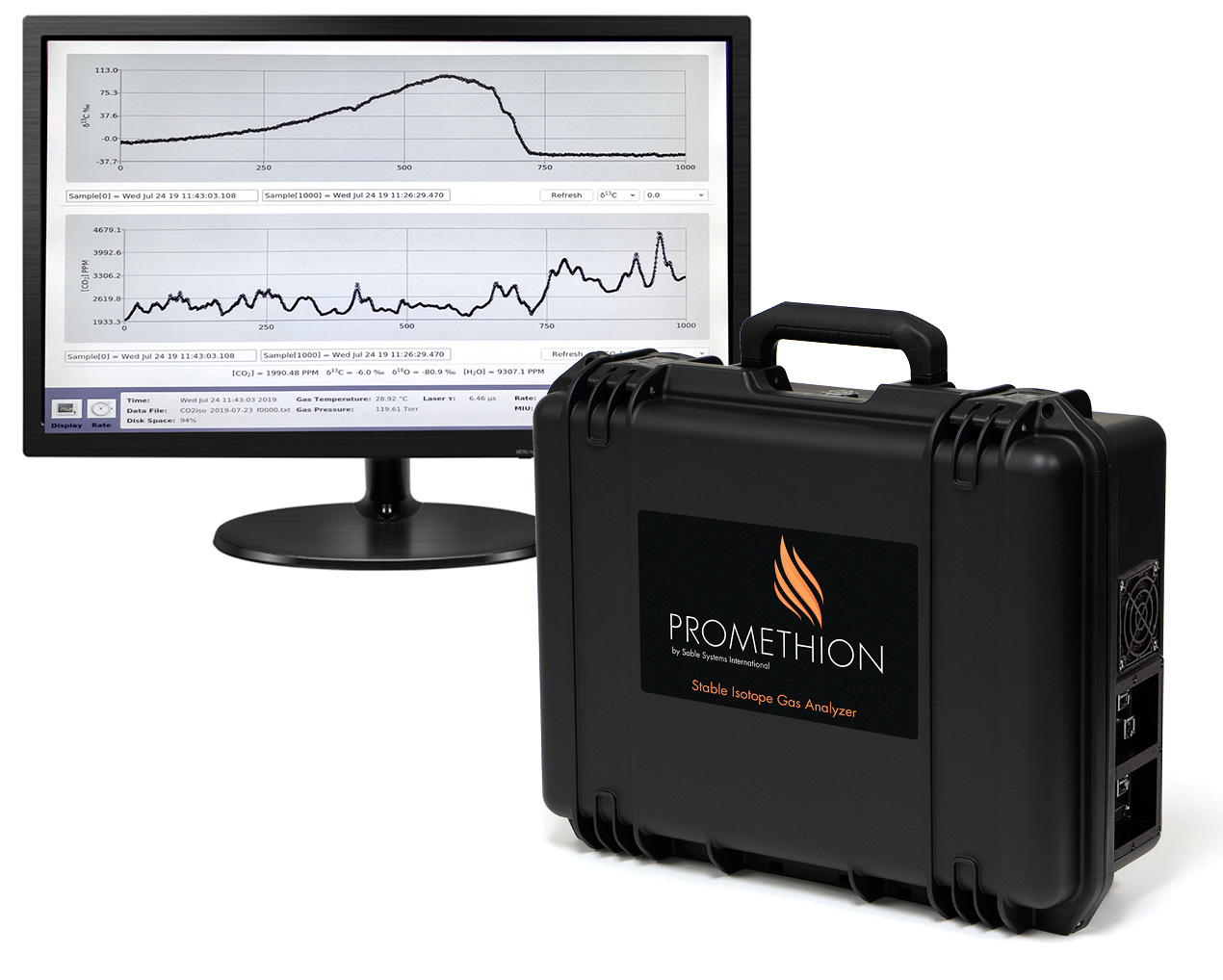

Promethion Live集成了多参数代谢和行为表型数据,进行全面评估。这包括来自我们的稳定同位素分析仪和新的甲烷分析仪的数据。这些高分辨率的代谢和行为数据相互同步,使得相关研究成为可能。为了对实验有更深入的理解,这些数据也可以与其他分析模式进行同步,例如基于遥测的体温测量或连续葡萄糖监测测量。



导出数据

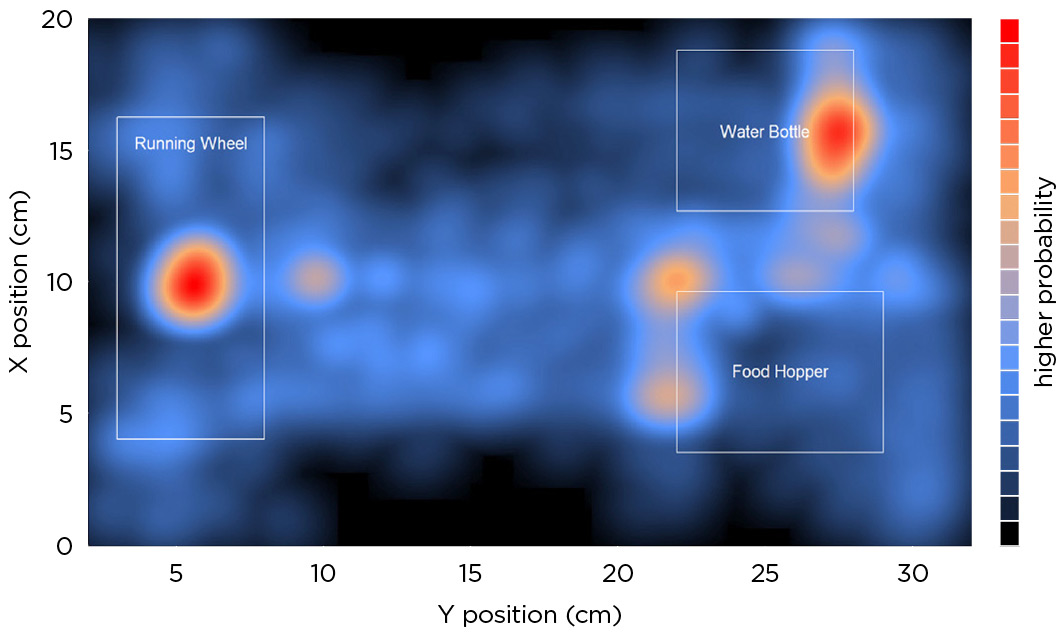

您可以将数据以CSV格式导出,供第三方软件应用进行统计或可视化分析。下方的热图定位动物位置是使用R(版权所有 © 2020 The R Foundation for Statistical Computing)制作的。Sable客户支持提供了R脚本。

View map of Promethion Core and Promethion Room Calorimetry academic installations

specs

ExpeData-P
Computer requirements
·       Computer or processor: 1 Gigahertz (GHz) or faster x86 processor
·       Operating system: Windows XP, Windows Vista, Windows 7, Windows 8 or Windows 8.1
·       Storage space: Minimum 7.5 Mb for program files (excludes data file storage)
·       Memory: 2GB or higher
·       Interface: Serial port or USB for port emulation required for acquisition (Serial to USB Adapter provided)
Acquisition features (requires additional hardware):
·       Analog interface: 12 channels
·       Maximum channels: 96
·       Maximum samples: Unrestricted*
·       Event markers: Unrestricted*
·       Digital control outputs: 8, TTL
·       Maximum digital control events: Unrestricted*
·       Voltage outputs: 2, 12-bit (0-5V)
·       Digital data acquisition: Yes (requires included plug-in programs)
·       Device regulation utility: Yes
·       Serial output for device control: Yes
·       Maximum file remarks: 1,000,000*
*Up to allowable system and virtual memory
Analysis features:
·      Input data formats: SCCF (ExpeData), ASCII text, Clipboard
·      Data section selection: Manual, automated by marker, automated by criterion
·      Automatable data selection: Lowest, highest, and most level sections
·      Data transformations: Linear models, non-linear models, general expressions using multiple channels
·      Drift correction: Linear and non-linear models, automatable
·      Span correction: Yes (to user provided value)
·      Statistics on selected data: Mean (with std. dev., SEM, N, etc.), area, linear regression (with slope, intercept, std. errs.)
·      Basic statistical tools: Yes (incorporated into spreadsheet)
·      Data export to other formats: Comma delimited text, tab delimited text, direct to Excel



·      Macro utility: Unrestricted length, up to 20 distinct scripts per macro file
MetaScreen
Computer requirements
·      Computer or processor: 1 Gigahertz (GHz) or faster x86 processor
·      Operating system: Windows XP, Windows Vista, Windows 7, Windows 8 or Windows 8.1
·      Storage space: Minimum 7.5 MB for program files (excludes data file storage)
·      Data file storage: Dependent on System Size (Approx. 50-100 MB per day)
·      Memory: 2GB or higher (4GB recommended)
·      Interface: USB 2.0 port
Required Devices
·      IM-3: USB to Sable Bus & Web-Based Interface Module
Supported Devices
·      CC-2: Cage Controller (Maximum 16)
·      MM-2: Mass Monitoring Device
·      AC-2: Food Access Control Door
·      BXYZ-M: Mouse Beam Break Array Activity Monitors
·      WHEEL-M: Mouse Wheel Rotation Counter
·      WHEEL STOP: Mouse Wheel Access Control (Unavailable with Rat cages)
·      ESA: Environmental Monitor
·      CGF: Combined Gas Analyzers and Flow Regulators
Acquisition Features
Sampling Rate: 1 Hz
·      Channels: Determined by system configuration
·      Automated calibration: Flow and Gas Analyzer Calibration

downloads

Promethion Live – Product Note

contact us

Please fill out the form here and our specialists will help configure the right system for your needs or provide you with a detailed quote.

To request manuals and software updates, or find warranty and service information, please contact our Support department.

Email us at info@chinagatecompany.cn or call 021-54251330.
